20V MAX, XR and FLEXVOLT are not three competing versions of the same specification. The labels describe different parts of DEWALT’s cordless range. A useful comparison begins with the exact tool model, its required battery platform and the batteries and charger included in the offer.
This guide uses North American naming, as used in the NTW buying context. Check the manufacturer’s instructions for the exact tool, battery and charger rather than assuming another market’s voltage label establishes compatibility.

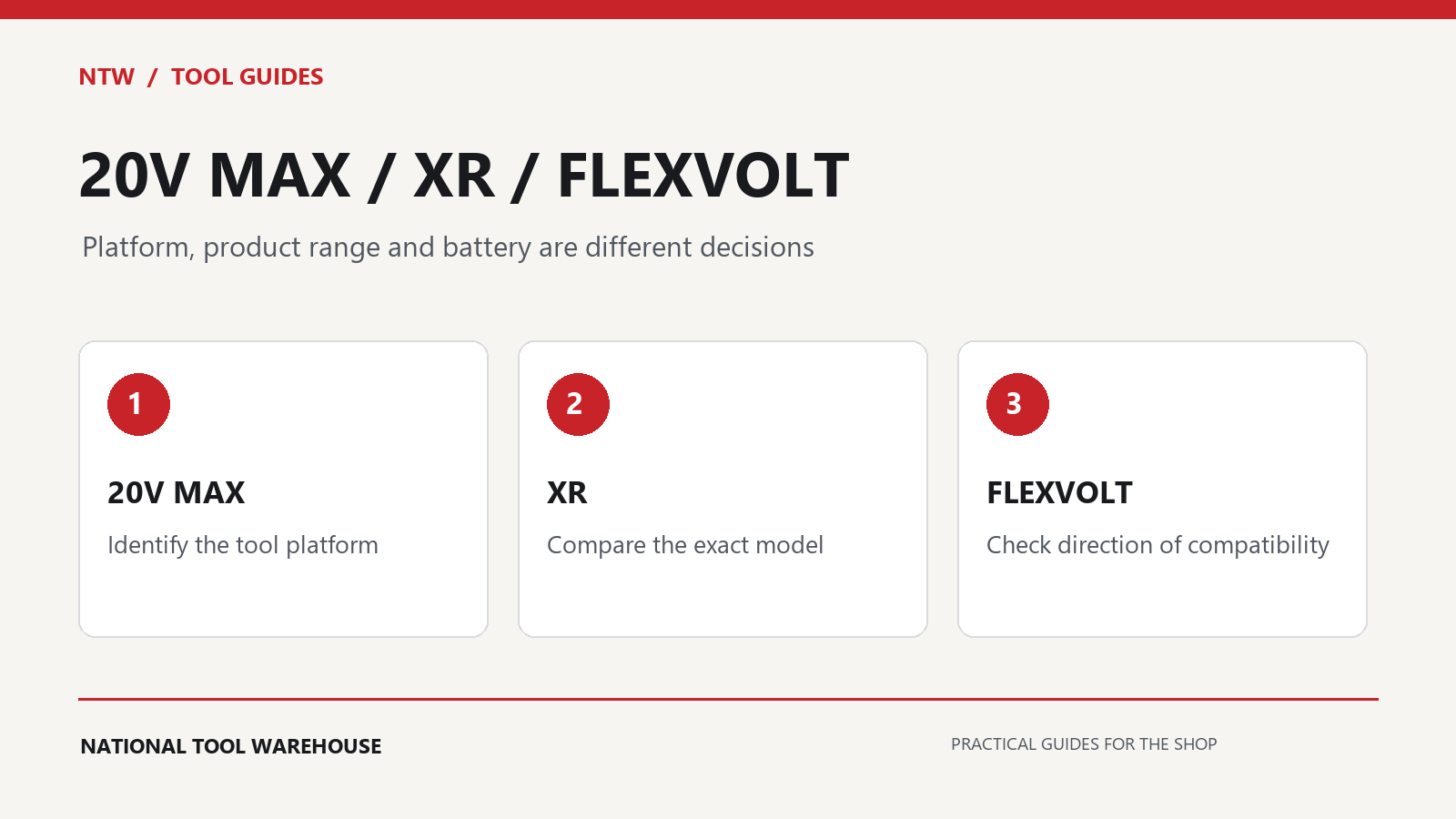

What each name tells you
| Label | What to learn from it | What still needs checking |
|---|---|---|
| 20V MAX | The named cordless platform | Exact supported battery and charger models |
| XR | A product-range designation on the named tool or pack | Actual specifications, size and included components |
| FLEXVOLT | A battery system that changes its voltage configuration for supported applications | Direction of compatibility and the tool’s requirements |
DEWALT identifies 20V MAX as a system and separately offers XR products within that range. XR lettering alone is not a universal torque, speed or runtime measurement. Compare those values on the exact model’s specification sheet, including the conditions used for any performance claim.
Understand the direction of battery compatibility
DEWALT documents FLEXVOLT batteries for supported 20V MAX and higher-voltage applications. This does not mean an ordinary 20V MAX battery can power a tool requiring a 60V MAX FLEXVOLT battery. The compatibility direction matters.
Before buying, write down the required platform from the tool manual and the model code from each battery you intend to use. Compare them with the manufacturer’s compatibility list. For tools requiring a particular battery arrangement, follow that arrangement exactly rather than inferring it from a pack’s physical appearance.
Do not file, modify or force a battery connection. Keep legacy adapters, third-party adapters and cross-brand claims outside the decision unless the exact combination is explicitly supported by the relevant manufacturer. A pack that can be attached is not, by itself, proof of an approved application.
Read capacity in the correct voltage mode
Amp-hours describe charge capacity at the stated operating voltage. They are not a universal measure of power or a guaranteed number of minutes. DEWALT’s FLEXVOLT documentation notes that the quoted amp-hour value is measured in 20V MAX mode.
For an illustrative energy comparison, 18 nominal volts multiplied by 5 amp-hours gives about 90 watt-hours. That arithmetic explains why both voltage and capacity belong in a comparison; it does not predict tool runtime, which depends on the load, operating conditions and the tool. Do not compare two different voltage modes by amp-hours alone.
Choose for the work and handling
Build a shortlist around the task. For a drill, compare the required drilling functions, chuck and control range. For an impact wrench, compare drive size, documented fastening and removal specifications, and the modes useful for the job. Larger numbers do not automatically make a tool the best fit for tight access or repetitive work.
Then consider the tool with its intended battery installed: balance, clearance, access to controls and the working environment all matter. Treat a light-duty inspection job and repeated heavy fastening as different buying decisions. Our power-tool platform guide provides a broader framework for deciding what belongs in the shop.
Bare tool or kit: compare the actual package
- Record the complete tool model, including the package suffix.
- List the quantity and model of every included battery.
- Identify the included charger and its supported packs.
- Check whether a case, accessory or attachment is included.
- Compare the total setup with what you already own.
A product photo showing a battery does not replace the package contents. If one offer is tool-only and another is a kit, compare the cost of a usable setup before drawing a price conclusion. Do not assume a charger is supplied with a battery-only purchase.
A useful purchase note
Write one sentence before ordering: “I need [tool function] for [job], using [exact battery model], charged by [exact charger model].” If any field is uncertain, resolve it first. This simple check is more useful than choosing only by the largest platform label.
Explore related electric and cordless tool guides, then match the exact equipment combination to the manufacturer’s current instructions.
Manufacturer references
DEWALT 20V MAX system; DEWALT XR range; DEWALT FLEXVOLT DCB609G documentation. Compatibility is an exact-model check, not a blanket cross-brand promise.
